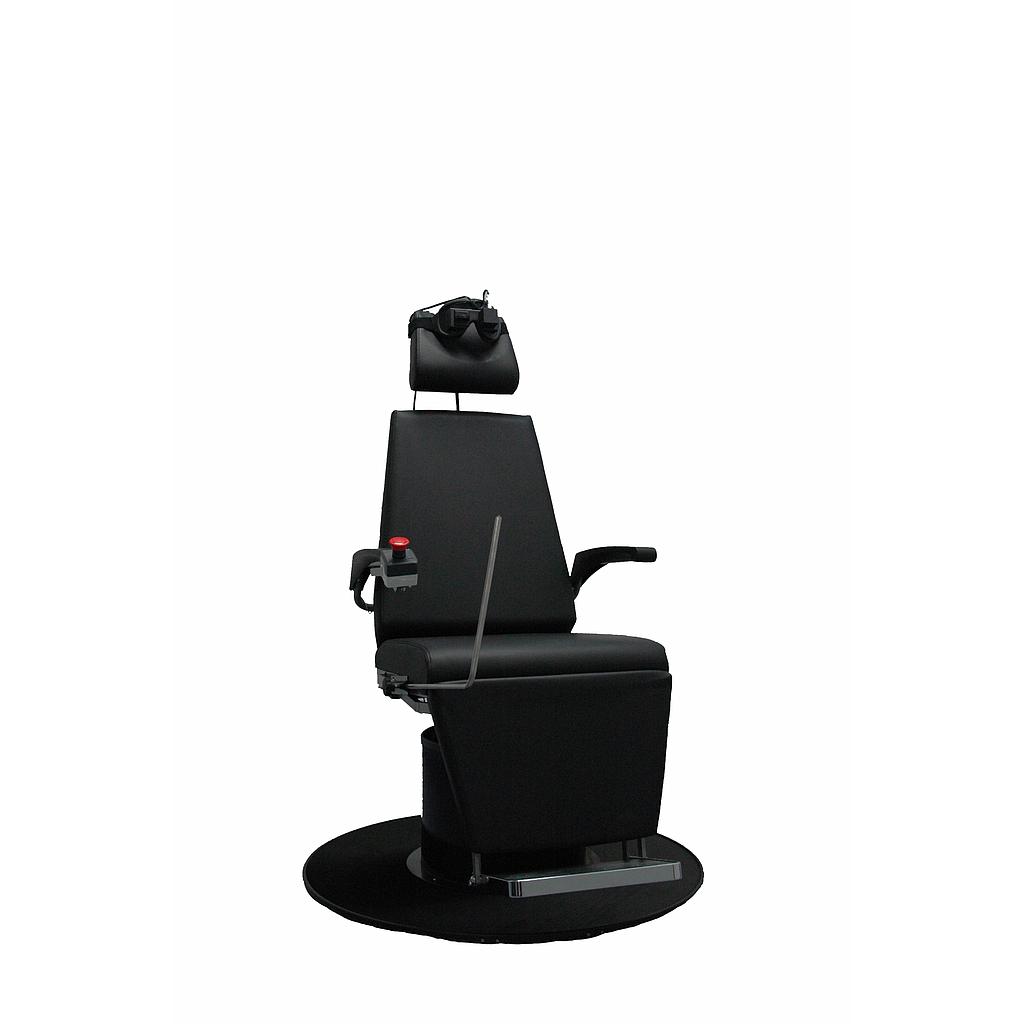

DI 040200 : Minitorque Rotary chair, Programmed, with reclining backrest to the horizontal

    This combination does not exist.

    Add to Cart

    DI 040200 : Minitorque Rotary chair, Programmed, with reclining backrest to the horizontal

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Rotary tests

    Minitorque brings you a lot of possibilities, although it remains very simple to use and gives a high accuracy of velocity and position regulation for the study of the rotary tests and the damped rotary tests. Minitorque is composed of a chair on a electric motor, without gearing and reducer, which fortunately reduces the obstruction and the mechanical. The chair with reclining back is for the realization of caloric test in lying position.


    Minitorque is a kinetic stimulator and is in real time connected with your software Disoft. The following movements can be piloted by your software :

    • sinus and damped sinus movements

    • triangular movements

    • trapezoidal and step movements

    • position movements for caloric tests


    • 36 contacts slip ring for ENG, VNG, surveillance, Emergency Stop and/or ocular fixation Led

    • Operator Emergency Switch

    • Fixation light (if requested - Ref.: FIXLED)

    • Adjustable Backrest of the chair to horizontal position

    Technical specification

    • Continuous torque motor: 92.2 Nm

    • Sinus frequency: 0.0125 to 1 Hz

    • Sinus amplitude: 0 to 1080°

    • Sinus damping: 0 to 100%

    • Velocity: 0 to 240 ± 0.01 °/sec.

    • Acceleration: 0 to 240°/sec²

    • Position: 0 to 360° ± 0.1 %

    • Connection PC: NAC port

    • Isolation to PC: 1500V

    • Sample frequency: 25 Hz

    • Weight: 165 kg

    • Dimensions: Ø110 cm

    Minitorque meets EN 60601-1 Standard and Directive 2007/47/EC.
