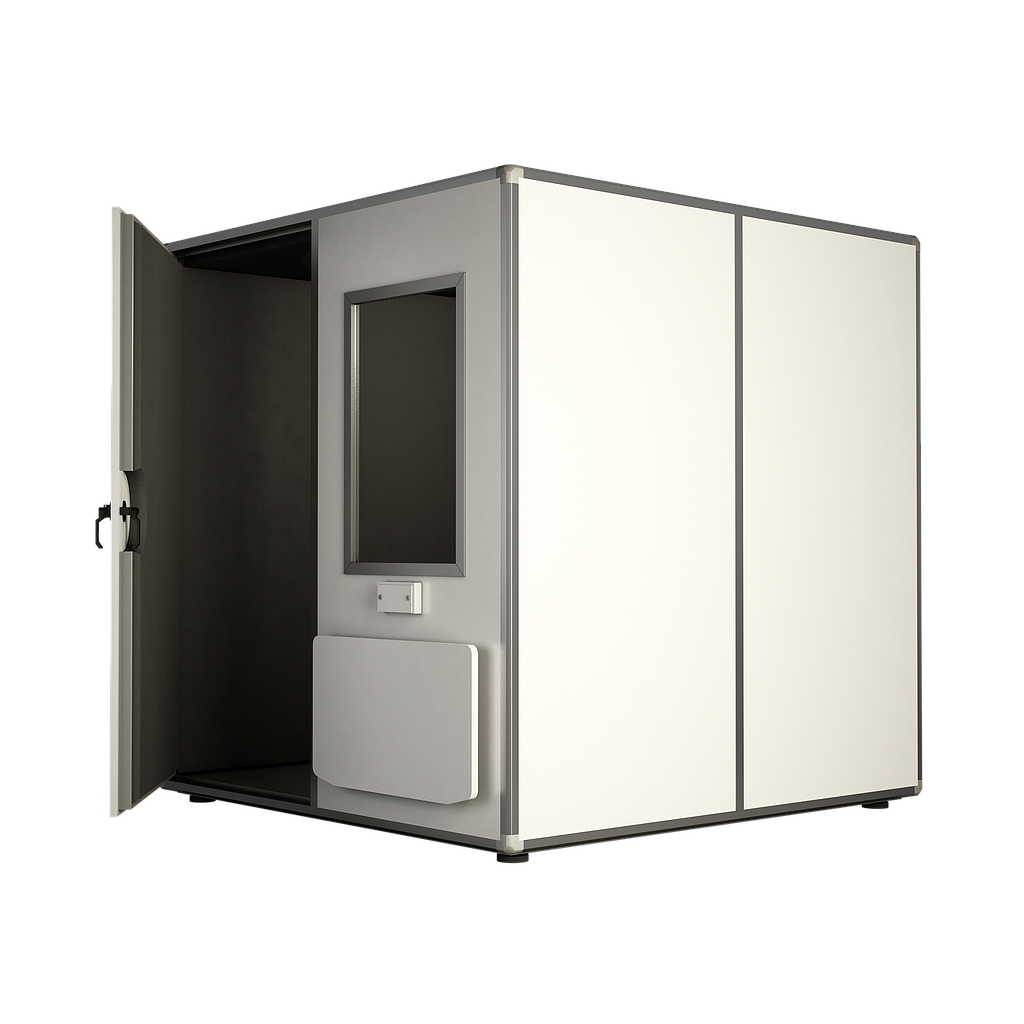

P35F1.3X2-COMPLETE : PRO 35F Soundproof booth, external dimension 132 x 211 x 217 cm, containing external folding table

    This combination does not exist.

    Add to Cart

    P35F1.3X2-COMPLETE : PRO 35F Soundproof booth, external dimension 132 x 211 x 217 cm, containing external folding table

    Terms and Conditions


    PRO35F line is recommended for hearing screening and diagnostic tests in audiology centers. The modular solutions are suitable for different applications and exams such as Free Field test.


    The structure of the cabin is made of a supporting aluminium frame insulated by acoustic materials.


    The exterior finishing is made of a white highly-resistant, fireproof, washable panel.


    The interior finishing is made of a special soundproof fiber covered with a new elegant, fireproof, washable and very resistant fabric for a perfect acoustics.


    The door is large for easy access with wheel chairs, beds and stretchers. Clear opening 90 x 200 cm (w x h), (60 cm clear opening width for P35F1X1).


    The window is large to provide better visibility to the doctor. It helps to eliminate that closed-in feeling for the patient. The window consists of a special double safety glass. Clear view 56 x 88 cm (w x h).


    The floor is layered with different materials and it stands on anti-vibration adjustable feet. Finishing: technical, antistatic, fireproof, washable carpet.

    Ventilation system

    Air ventilation (optional equipment) is guaranteed by a silent forced ventilation system mounted on top of the booth. *(outside cabin height 242 cm). Air ventilation system can be also installed on the walls to save space in height.

    Connecting instruments

    Cables are laid through a new universal soundproof panel without jack connection. All kinds of cables can be used without the need to be cut. Adaptable to all types of instruments. Hangers for earphones are included.

    Electrical system

    Switches for lighting and ventilation are separated. Lighting is ensured by a LED light with low energy consumption. Power supply: 86/265 V. - 50/60 Hz.

    Noise reduction

    PRO35F line is tested at the Technical-Physics Laboratory C.S.I. S.p.A. (Milano-Italy) accredited by ACCREDIA.

    *Product conforms with international UNI EN ISO 8253 1:2010 with a background noise no greater than 64dB (at 500Hz) assuming a noise barrier headset (audiocups) is used.

    Acoustic insulation


    Optional equipment

    • Air ventilation system

    • Wall ventilation support

    • External folding table (79 x 50 cm)

    • Internal folding table (79 x 32 cm)

    • Ramps for easy access

    • Audiocups

    • Kit 10 or 6 jack cable extensions

    • Jack panel (10 jack + USB)

    • Modification Voltage 110 V.

    • Emergency light

    • Internal power sockets

    • Wall audiometer support

    • Internal seat

    • Floating floor

    • Laminate floor

    • Additional windows (w x h, cm): 25 x 176; 56 x 88; 120 x 56

    • Window on door 25 x 56 cm (w x h)

    • Additional door 60/90 cm opening

    • Special sizes

    • Free Field configuration pack


    Delivered for shipping in a ISPM wooden case with DIY kit.


    Easy and quick to install in DIY kit; no specialised staff required. Just follow the instructions. Positionable on any floor. The installation needs 10 cm overall each side (l x w x h).


    The materials are fireproof at the origin. Specifications are subject to change without notice. Warranty: limited to one year from delivery date.


    Medical Device Class I - MDD 93/42/CEE

    2007/47/CE - CEI 64/11

    CEI 64/8 - 2006/95/CE

    UNI EN ISO 8253 1:2010
