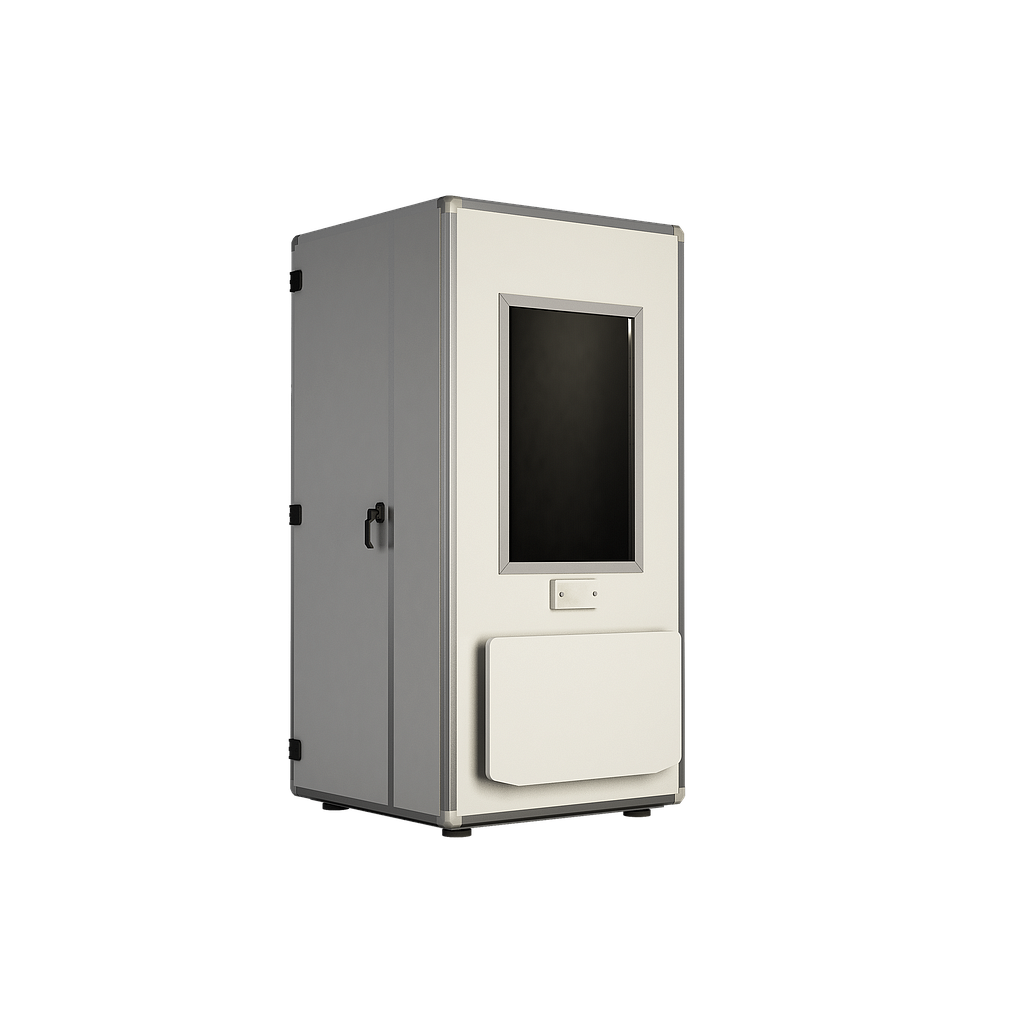

P35F1.3X1-COMPLETE : PRO 35F Soundproof booth, external dimension 107 x 132 x 217 cm, containing external folding table
P35F1.3X1-COMPLETE : Cabine audiométrique PRO 35F, dimensions extérieures 107 x 132 x 217 cm, comprenant table pliante externe
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
PRO35F line is recommended for hearing screening and diagnostic tests in audiology centers. The modular solutions are suitable for different applications and exams such as Free Field test.
The structure of the cabin is made of a supporting aluminium frame insulated by acoustic materials.
The exterior finishing is made of a white highly-resistant, fireproof, washable panel.
The interior finishing is made of a special soundproof fiber covered with a new elegant, fireproof, washable and very resistant fabric for a perfect acoustics.
The door is large for easy access with wheel chairs, beds and stretchers. Clear opening 90 x 200 cm (w x h), (60 cm clear opening width for P35F1X1).
The window is large to provide better visibility to the doctor. It helps to eliminate that closed-in feeling for the patient. The window consists of a special double safety glass. Clear view 56 x 88 cm (w x h).
The floor is layered with different materials and it stands on anti-vibration adjustable feet. Finishing: technical, antistatic, fireproof, washable carpet.
Air ventilation (optional equipment) is guaranteed by a silent forced ventilation system mounted on top of the booth. *(outside cabin height 242 cm). Air ventilation system can be also installed on the walls to save space in height.
Cables are laid through a new universal soundproof panel without jack connection. All kinds of cables can be used without the need to be cut. Adaptable to all types of instruments. Hangers for earphones are included.
Switches for lighting and ventilation are separated. Lighting is ensured by a LED light with low energy consumption. Power supply: 86/265 V. - 50/60 Hz.
PRO35F line is tested at the Technical-Physics Laboratory C.S.I. S.p.A. (Milano-Italy) accredited by ACCREDIA.
*Product conforms with international UNI EN ISO 8253 1:2010 with a background noise no greater than 64dB (at 500Hz) assuming a noise barrier headset (audiocups) is used.
Air ventilation system
Wall ventilation support
External folding table (79 x 50 cm)
Internal folding table (79 x 32 cm)
Ramps for easy access
Kit 10 or 6 jack cable extensions
Jack panel (10 jack + USB)
Modification Voltage 110 V.
Internal power sockets
Wall audiometer support
Additional windows (w x h, cm): 25 x 176; 56 x 88; 120 x 56
Window on door 25 x 56 cm (w x h)
Additional door 60/90 cm opening
Free Field configuration pack
Delivered for shipping in a ISPM wooden case with DIY kit.
Easy and quick to install in DIY kit; no specialised staff required. Just follow the instructions. Positionable on any floor. The installation needs 10 cm overall each side (l x w x h).
The materials are fireproof at the origin. Specifications are subject to change without notice. Warranty: limited to one year from delivery date.
Medical Device Class I - MDD 93/42/CEE
2007/47/CE - CEI 64/11
CEI 64/8 - 2006/95/CE
UNI EN ISO 8253 1:2010
